      • OMADA SG3452P, 48 Port Gigabit, 48 Port Gigabit PoE+, 384W, 4 Port SFP, L2+ Yönetilebilir, Rackmount Metal Kasa Switch

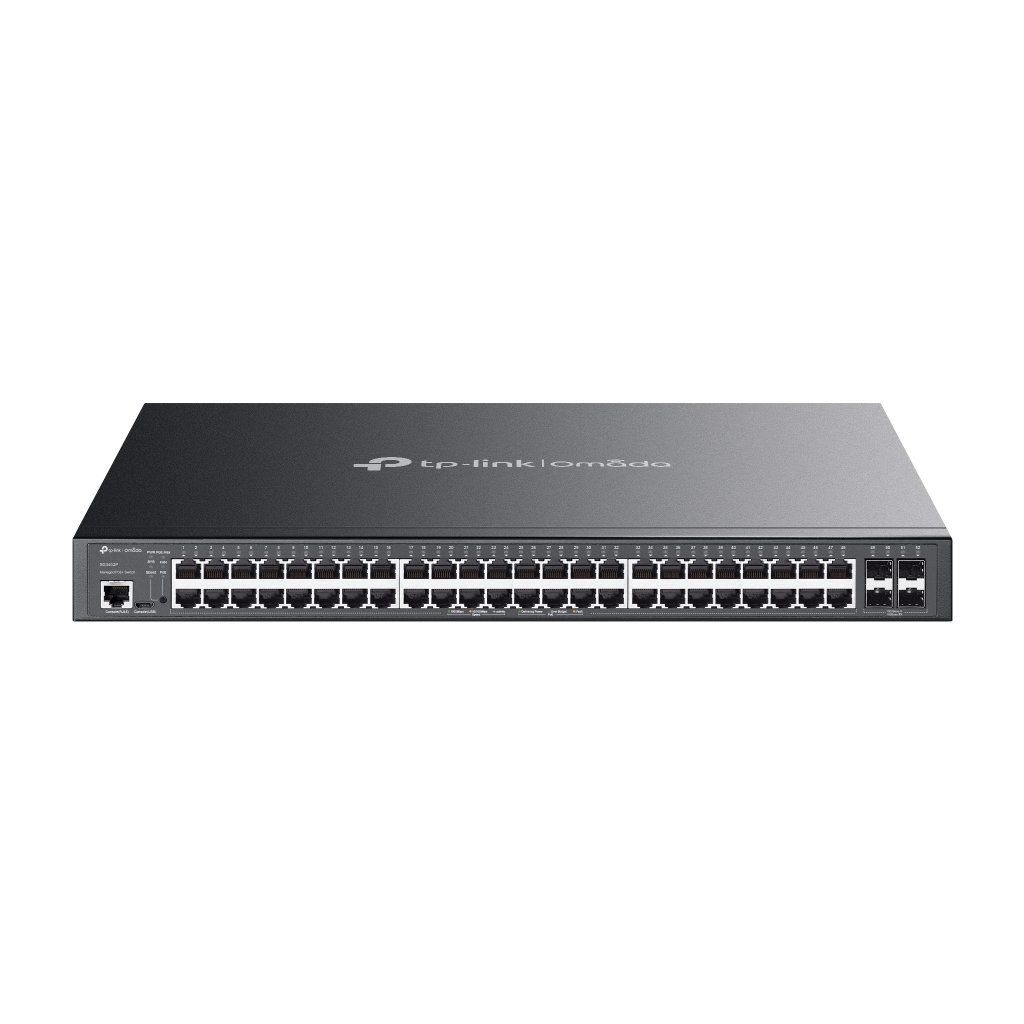

      OMADA SG3452P, 48 Port Gigabit, 48 Port Gigabit PoE+, 384W, 4 Port SFP, L2+ Yönetilebilir, Rackmount Metal Kasa Switch
      Görsel 1
      AtlasPuan : 22.598.695
      Fiyat:
      28.545,72 TL
      Havale / EFT:
      28.117,53 TL

      Ürüne Oy Verin

      DONANIM ZELLİKLERİ
      Arabirim• 48× 10/100/1000 Mbps PoE+ RJ45 Ports
      • 4× Gigabit SFP Slots
      • 1× RJ45 Console Port
      • 1× Micro-USB Console Port
      Fan Sayısı3
      Fiziksel Gvenlik Kilidi√
      G Kaynağı100-240 V AC~50/60 Hz
      PoE Portları RJ45 • Standard: 802.3at/af compliant
      • PoE+ Ports: 48 Ports up to 30 W PoE Output per Port
      • PoE Power Budget: 384 W*
      Boyutlar W X D X H 17.3×13.0×1.7 in 440×330×44 mm
      MontajRack Mountable
      Maks. G Tketimi464.2 W 110 V/60 Hz with 384 W PD connected
      Max. Heat Dissipation1584.08 BTU/hr 110 V/60 Hz with 384 W PD connected
      PERFORMANS
      Anahtarlama Kapasitesi104 Gbps
      Paket Ynlendirme Hızı77.38 Mpps
      MAC Adres Tablosu16 K
      Paket Buffer Belleği12 Mbit
      Jumbo Frame9 KB
      YAZILIM ZELLİKLERİ
      Quality of Service• 8 priority queues
      • 802.1p CoS/DSCP priority
      • Queue scheduling: SP Strict Priority , WRR Weighted Round Robin , SP+WRR
      • Bandwidth Control: Port/Flow based Rating Limiting
      • Smoother Performance
      • Action for Flows: QoS remark 802.1P Remark, DSCP Remark
      L2 ve L2+ zellikleri• 32 IP Interfaces: Support IPv4/IPv6 Interface
      • Static Routing: 48 IPv4/IPv6 Static Routes
      • Static ARP: 128 static entries
      • 316 ARP Entries
      • Proxy ARP
      • Gratuitous ARP
      • DHCP Server
      • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
      • DHCP L2 Relay
      • Link Aggregation
      • Spanning Tree Protocol
      • Loopback Detection
      • 802.3x Flow Control
      • Mirroring
      • Device Link Detect Protocol DLDP
      L2 Multicast• Supports 511 IPv4, IPv6 IGMP groups
      • IGMP Snooping
      • IGMP Authentication
      • Multicast VLAN Registration MVR
      • MLD Snooping
      • Multicast Filtering: 256 profiles and 16 entries per profile
      Gelişmiş zellikler• Automatic Device Discovery†
      • Batch Configuration†
      • Batch Firmware Upgrading†
      • Intelligent Network Monitoring†
      • Abnormal Event Warnings†
      • Unified Configuration†
      • Reboot Schedule†

      ISP Features**:
      • L2PT Layer 2 Protocol Tunneling
      • Device Link Detect Protocol DLDP
      • PPPoE ID Insertion
      • ERPS
      • 802.3ah Ethernet Link OAM
      VLAN• VLAN Group: Max 4K VLAN Groups
      • 802.1q Tagged VLAN
      • MAC VLAN: 48 Entries
      • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
      • Private VLAN
      • GVRP
      • VLAN VPN QinQ : Port-Based QinQ; Selective QinQ
      • Voice VLAN
      Erişim Kontrol Listesi• Time-based ACL
      • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
      • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority
      • Combined ACL
      • Packet Content ACL
      • IPv6 ACL
      • Policy: Mirroring, Redirect, Rate Limit, QoS Remark
      • ACL apply to Port/VLAN
      Gvenlik• IP-MAC-Port Binding
      - 512 Entries
      - DHCP Snooping
      - ARP Inspection
      - IPv4 Source Guard: 100 Entries
      • IPv6-MAC-Port Binding
      - 512 Entries
      - DHCPv6 Snooping
      - ND Detection
      - ND Snooping
      - IPv6 Source Guard: 100 Entries
      • DoS Defend
      • DHCP Filter
      • Static/Dynamic Port Security: Up to 64 MAC addresses per port
      • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
      • 802.1X
      - Port-based authentication
      - Mac-base authentication
      - VLAN Assignment
      - MAB
      - Guest VLAN
      - Radius authentication and accountability support
      • AAA including TACACS+
      • Port Isolation
      • Secure web management through HTTPS with SSLv3/TLS 1.2
      • Secure Command Line Interface CLI management with SSHv1/SSHv2
      • IP/Port/MAC-based access control
      IPv6• IPv6 Dual IPv4/IPv6
      • Multicast Listener Discovery MLD Snooping
      • IPv6 ACL
      • IPv6 Interface
      • Static IPv6 Routing
      • IPv6 neighbor discovery ND
      • Path maximum transmission unit MTU discovery
      • Internet Control Message Protocol ICMP version 6
      • TCPv6/UDPv6
      • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet v6 , IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
      MIBs• MIB II RFC1213
      • Bridge MIB RFC1493
      • P/Q-Bridge MIB RFC2674
      • Radius Accounting Client MIB RFC2620
      • Radius Authentication Client MIB RFC2618
      • Remote Ping, Traceroute MIB RFC2925
      • Support TP-Link private MIBs
      • RMON MIB RFC1757, rmon 1,2,3,9
      YNETİM
      Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
      Centralized Management• Omada Cloud-Based Controller
      • Omada Hardware Controller
      • Omada Software Controller
      Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
      Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
      Management Features• Web-based GUI
      • Command Line Interface CLI through console port, telnet
      • SNMPv1/v2c/v3
      - Trap/Inform
      - RMON 1, 2, 3, 9 groups
      • SDM Template
      • DHCP/BOOTP Client
      • 802.1ab LLDP/LLDP-MED
      • DHCP AutoInstall
      • Dual Image, Dual Configuration
      • CPU Monitoring
      • Cable Diagnostics
      • EEE
      • Password Recovery
      • SNTP
      • System Log
      DİĞERLERİ
      SertifikaCE, FCC, RoHS
      Paket İeriği• SG3452P Switch
      • Power Cord
      • Quick Installation Guide
      • Rackmount Kit
      • Rubber Feet
      Sistem GereksinimleriMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
      Ortam• Operating Temperature: 0–40 ? 32–104 ? ;
      • Storage Temperature: -40–70 ? -40–158 ?
      • Operating Humidity: 10–90% RH non-condensing
      • Storage Humidity: 5–90% RH non-condensing
      Diğer Özellikler
      Stok KoduSG3452P
      MarkaOmada
      Stok DurumuVar
