      • OMADA SG2005P-PD, 5 Port Gigabit, 4 Port Gigabit PoE+, 1 Port Poe++, 90W, Yönetilebilir, Su Geçirmez, Outdoor Switch

      OMADA SG2005P-PD, 5 Port Gigabit, 4 Port Gigabit PoE+, 1 Port Poe++, 90W, Yönetilebilir, Su Geçirmez, Outdoor Switch

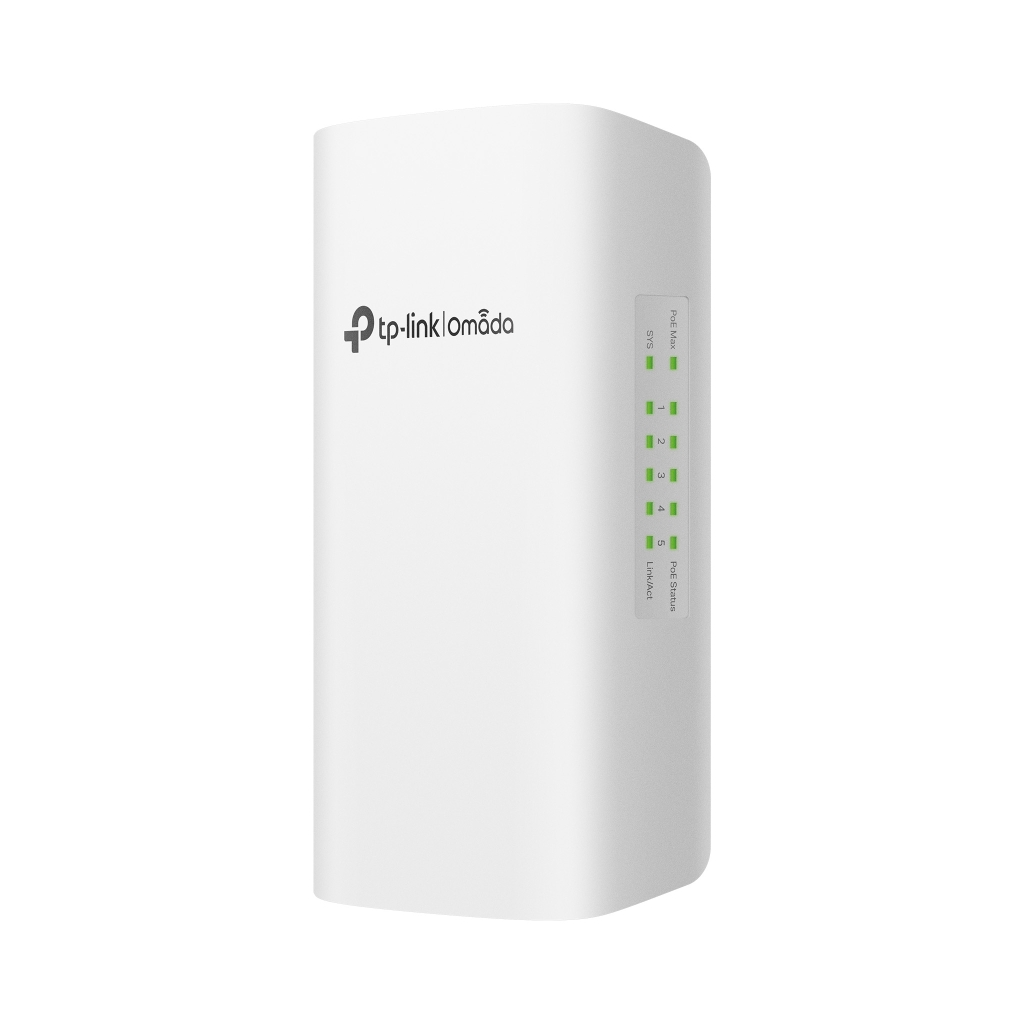

      Görsel 1
      AtlasPuan : 3.967.533
      Fiyat:
      5.011,62 TL
      Havale / EFT:
      4.936,45 TL

      Ürüne Oy Verin





      DONANIM ÖZELLİKLERİ

      Standartlar ve ProtokollerIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
      Arabirim• 1× 10/100/1000 Mbps RJ45 PoE In Ports compliance with 802.3af/at/bt
      • 4× 10/100/1000 Mbps RJ45 PoE Out Ports compliance with 802.3af/at PoE
      Ağ Medyası• 10BASE-T: UTP category 3, 4, 5 cable maximum 100m
      • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable maximum 100m
      Fan SayısıFanless
      Güç KaynağıObtain Power from 802.3af/at/bt PoE Source
      PoE Portları RJ45 • PoE In Port: Port 5, Compliance with 802.3af/at/bt
      • PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE
      • PoE Power Budget:
      -64 W when powered by 802.3bt Type 4 90 W
      -44 W when powered by 802.3bt Type 3 60 W
      -19 W when powered by 802.3at
      -6 W when powered by 802.3af
      Boyutlar W X D X H 3.9 × 1.5 × 6.7 in 100 × 38.5 × 170 mm
      Maks. Güç Tüketimi71.5 W when powered by 802.3bt Type 4 90 W
      Max. Heat Dissipation243.99 BTU/hr when powered by 802.3bt Type 4 90 W

      PERFORMANS

      Anahtarlama Kapasitesi10 Gbps
      Paket Yönlendirme Hızı7.44 Mpps
      MAC Adres Tablosu8k
      Paket Buffer Belleği4.1 Mbit
      Jumbo Frame9 KB

      YAZILIM ÖZELLİKLERİ

      Quality of Service• 802.1p CoS/DSCP priority
      • 8 priority queues
      • Priority Schedule Mode
      - SP Strict Priority
      - WRR Weighted Round Robin
      • Queue Weight Config
      • Bandwidth Control
      - Port/Flow-based Rating Limit
      • Smoother Performance
      • Storm Control
      - Multiple Control Modes kbps/ratio
      - Broadcast/Multicast/Unknown-Unicast Control
      L2 ve L2+ Özellikleri• 32 IP Interfaces
      - Support IPv4/IPv6 Interface
      • Static Routing
      - 32 IPv4/IPv6 Static Routes
      • DHCP Server
      • DHCP Relay
      - DHCP Interface Relay
      - DHCP VLAN Relay
      • DHCP L2 Relay
      • Static ARP
      • Proxy ARP
      • Gratuitous ARP
      • Link Aggregation
      - Static link aggregation
      - 802.3ad LACP
      - Up to 8 aggregation groups and up to 8 ports
      per group
      • Spanning Tree Protocol
      - 802.1D STP
      - 802.1w RSTP
      - 802.1s MSTP
      - STP Security: TC Protect, BPDU Filter/Protect,
      Root Protect
      • Loopback Detection
      • Flow Control
      - 802.3x Flow Control
      • Mirroring
      - Port Mirroring
      - CPU Mirroring
      - One-to-One
      - Many-to-One
      - Flow-Based
      - Ingress/Egress/Both
      • Device Link Detect Protocol DLDP
      • 802.1ab LLDP/ LLDP-MED
      L2 Multicast• 511 IPv4, IPv6 shared multicast groups
      • IGMP Snooping
      - IGMP v1/v2/v3 Snooping
      - Fast Leave
      - IGMP Snooping Querier
      - Static Group Config
      • Multicast VLAN Registration MVR
      • Multicast Filtering
      • MLD Snooping
      - MLD v1/v2 Snooping
      - Fast Leave
      - MLD Snooping Querier
      - Static Group Config
      • Limited IP Multicast 256 profiles and 16 entries per profile
      Gelişmiş Özellikler• Automatic Device Discovery
      • Batch Configuration
      • Batch Firmware Upgrading
      • Intelligent Network Monitoring
      • Abnormal Event Warnings
      • Unified Configuration
      • Reboot Schedule
      VLAN• VLAN Group
      - Max. 4K VLAN Groups
      • 802.1Q tag VLAN
      • MAC VLAN: 12 Entries
      • Protocol VLAN
      • GVRP
      • Voice VLAN
      Erişim Kontrol Listesi• Support up to 230 entries
      • Time-Range
      - Time Slice
      - Week Time-Range
      - Absolute Time-Range
      - Holiday
      • Time-based ACL
      • MAC ACL
      - Source MAC
      - Destination MAC
      - VLAN ID
      - User Priority
      - Ether Type
      • IP ACL
      - Source IP
      - Destination IP
      - IP Protocol
      - TCP Flag
      - TCP/UDP Source Port
      - TCP/UDP Destination Port
      - DSCP/IP TOS
      • IPv6 ACL
      • Combined ACL
      • Rule Operation
      - Permit/Deny
      • Policy Action
      - Mirror
      - Rate Limit
      - Redirect
      - QoS Remark
      • ACL Rules Binding
      - Port Binding
      - VLAN Binding
      • Actions for flows
      - Mirror to supported interface
      - Redirect to supported interface
      - Rate Limit
      - QoS Remark
      Güvenlik• AAA
      • 802.1X
      - Port-based authentication
      - MAC Host based authentication
      - Authentication Method includes PAP/EAP-MD5
      - MAB
      - Guest VLAN
      - Support Radius authentication and accountability
      • IP/IPv6-MAC Binding
      - 512 Binding Entries
      - DHCP Snooping
      - DHCPv6 Snooping
      - ARP Inspection
      - ND Detection
      • IP Source Guard
      - 253 Entries
      - Source IP+Source MAC
      • IPv6 Source Guard
      - 183 Entries
      - Source IPv6 Address+Source MAC
      • DoS Defend
      • Static/Dynamic/Permanent Port Security
      - Up to 64 MAC addresses per port
      • Broadcast/Multicast/Unicast Storm Control
      - kbps/ratio control mode
      • Port Isolation
      • Secure web management through HTTPS with SSLv3/TLS 1.2
      • Secure Command Line Interface CLI management with SSHv1/SSHv2
      • IP/Port/MAC-based access control
      IPv6• IPv6 Dual IPv4/IPv6
      • Multicast Listener Discovery MLD Snooping
      • IPv6 neighbor discovery ND
      • Path maximum transmission unit MTU discovery
      • Internet Control Message Protocol ICMP version 6
      • TCPv6/UDPv6
      • IPv6 applications
      - DHCPv6 Client
      - Ping6
      - Tracert6
      - Telnet v6
      - IPv6 SNMP
      - IPv6 SSH
      - IPv6 SSL
      - Http/Https
      - IPv6 TFTP
      MIBs• MIB II RFC1213
      • Bridge MIB RFC1493
      • P/Q-Bridge MIB RFC2674
      • Radius Accounting Client MIB RFC2620
      • Radius Authentication Client MIB RFC2618
      • Remote Ping, Traceroute MIB RFC2925
      • Support TP-Link private MIBs
      • RMON MIB RFC1757, rmon 1,2,3,9

      YÖNETİM

      Omada AppYes, through
      • Omada Cloud-Based Controller
      • Omada Hardware Controller
      • Omada Software Controller
      Centralized Management• Omada Cloud-Based Controller
      • Omada Hardware Controller
      • Omada Software Controller
      Cloud AccessYes, through
      • Omada Cloud-Based Controller
      • Omada Hardware Controller
      • Omada Software Controller
      Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
      Management Features• Web-based GUI
      • Command Line Interface CLI through telnet
      • SNMPv1/v2c/v3
      • SNMP Trap/Inform
      • RMON 1,2,3,9 groups
      • SDM Template
      • DHCP/BOOTP Client
      • Dual Image, Dual Configuration
      • CPU Monitoring
      • Cable Diagnostics
      • EEE
      • SNTP
      • System Log

      DİĞERLERİ

      SertifikaCE, FCC, RoHS
      Paket İçeriği• SG2005P-PD
      • Mounting Kits
      • Installation Guide
      Sistem GereksinimleriMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
      Ortam• Operating Temperature: -40 to 60 °C -40 to 140 °F
      • Storage Temperature: -40 °C to 70 °C -40 °F to 158 °F
      • Operating Humidity: 10–90% RH non-condensing
      • Storage Humidity: 5–90% RH non-condensing
      Diğer Özellikler
      Stok KoduSG2005P-PD
      MarkaOmada
      Stok DurumuVar
