      • Omada IES206GPP Industrial, 6 Port Gigabit, 1Port Poe++, 3 Port Poe+, 1 Port Gigabit Combo SFP, 120W, Yönetilebilir, Endüstriyel Switch

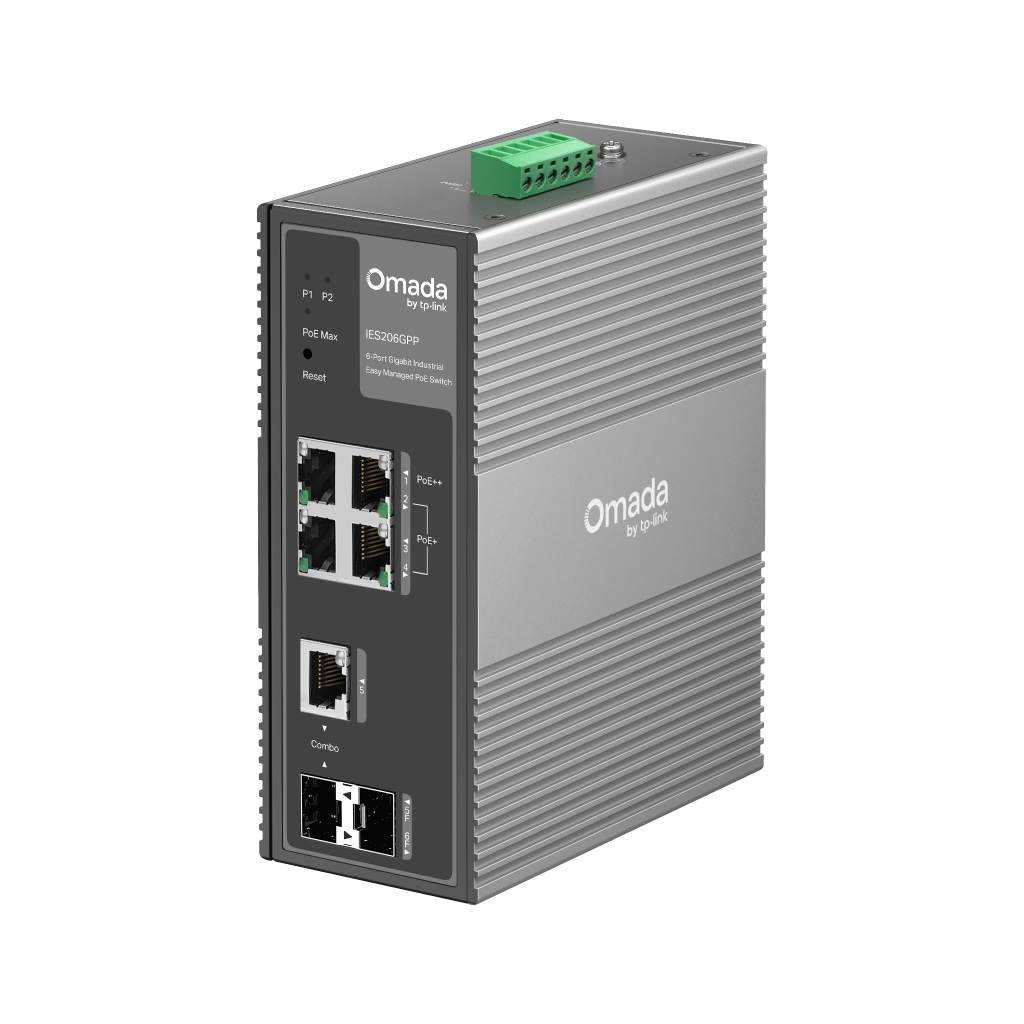

      Omada IES206GPP Industrial, 6 Port Gigabit, 1Port Poe++, 3 Port Poe+, 1 Port Gigabit Combo SFP, 120W, Yönetilebilir, Endüstriyel Switch
      Görsel 1
      AtlasPuan : 5.994.880
      Fiyat:
      7.572,47 TL
      Havale / EFT:
      7.458,88 TL

      Ürüne Oy Verin





      DONANIM ÖZELLİKLERİ
      Arabirim• 1× 10/100/1000 Mbps PoE++ RJ45 Ports
      • 3× 10/100/1000 Mbps PoE+ RJ45 Ports
      • 1× Gigabit SFP/RJ45 Combo Slot
      • 1× Gigabit SFP Slot
      • Auto-Negotiation/Auto MDI/MDIX
      Fan SayısıFanless
      Kurulum• DIN-rail mounting
      • Wall mounting
      Güç Kaynağı12-57V 1+1 Redundant DC Power Input
      PoE Portları RJ45 • Standard: 802.3af/at/bt compliant
      • PoE++ Ports 802.3af/at/bt PoE : 1 Port, up to 60W per port
      • PoE+ Ports 802.3af/at PoE : 3 Ports, up to 30W per port
      • PoE Budget:
      - 60W Input: 12V / 7.0A - 21V / 3.5A
      - 120W Input: 21V / 6.5A - 57V / 2.3A
      • Fast PoE
      • Perpetual PoE
      Boyutlar W X D X H 6.1 × 4.7 × 2.4 in 155 × 120 × 60 mm
      Surge Protection• ±6 kV in common mode for Ethernet ports
      • ±4 kV in common mode for DC power input ports
      PERFORMANS
      Anahtarlama Kapasitesi12 Gbps
      Paket Yönlendirme Hızı8.93 Mpps
      MAC Adres Tablosu8K
      Paket Buffer Belleği4 Mbit
      Jumbo Frame15 KB
      YAZILIM ÖZELLİKLERİ
      Quality of Service• 802.1p DSCP Priority
      • 8 Priority Queues
      • Priority Schedule Mode
      - WRR Weighted Round Robin
      • Queue Weight Config
      • Bandwidth Control
      - Port-Based Rate Limit
      • Storm Control
      - Multiple Control Modes kbps/pps
      - Broadcast/Multicast/Unknown-Unicast Control
      L2 Özellikleri• Link Aggregation
      - Static Link Aggregation
      - Up to 2 aggregation groups and up to 4 ports per group
      • Loopback Detection
      • Flow Control
      - 802.3x Flow Control
      • Mirroring
      - Port Mirroring
      - One-to-One
      - Many-to-One
      - Ingress/Egress/Both
      • Port Statistics
      - Port Mirror Status
      - Traffic Statistics
      • 802.1ab LLDP
      • Spanning Tree
      - STP 802.1d
      - RSTP 802.1w
      L2 Multicast• IGMP Snooping
      - IGMP v1/v2/v3 Snooping
      - Fast Leave
      VLAN• MTU VLAN
      • Port-Based VLAN
      • 802.1Q Tag VLAN
      - Max 32 VLAN Groups
      - 4K VID
      İletim MetoduStore-And-Forward
      YÖNETİM
      Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
      Centralized Management• Omada Cloud-Based Controller
      • Omada Hardware Controller
      • Omada Software Controller
      Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
      Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
      Management Features• Web-based GUI
      • DHCP Client
      • Cable Diagnostics
      • Digital Diagnostic Monitoring DDM
      • Automatic Device Discovery†
      • Batch Configuration†
      • Batch Firmware Upgrading†
      • Unified Configuration†
      DİĞERLERİ
      SertifikaFCC, CE, RoHS
      Paket İçeriği• IES206GPP
      • DIN-Rail Mounting Bracket
      • Wall-Mounting Plates
      • Installation Guide
      Ortam• Operating Temperature: -40?~75? -40?~167?
      • Storage Temperature: -40?~85? -40?~185?
      • Operating Humidity: 5%~95% non-condensing
      • Storage Humidity: 5%~95% non-condensing







      Diğer Özellikler
      Stok KoduIES206GPP
      MarkaOmada
      Stok DurumuVar
