      • Omada ES220GMP, 16 Port Gigabit, 16 Port PoE+, 2 Port Gigabit SFP, 250W, Yönetilebilir, Rackmount Switch

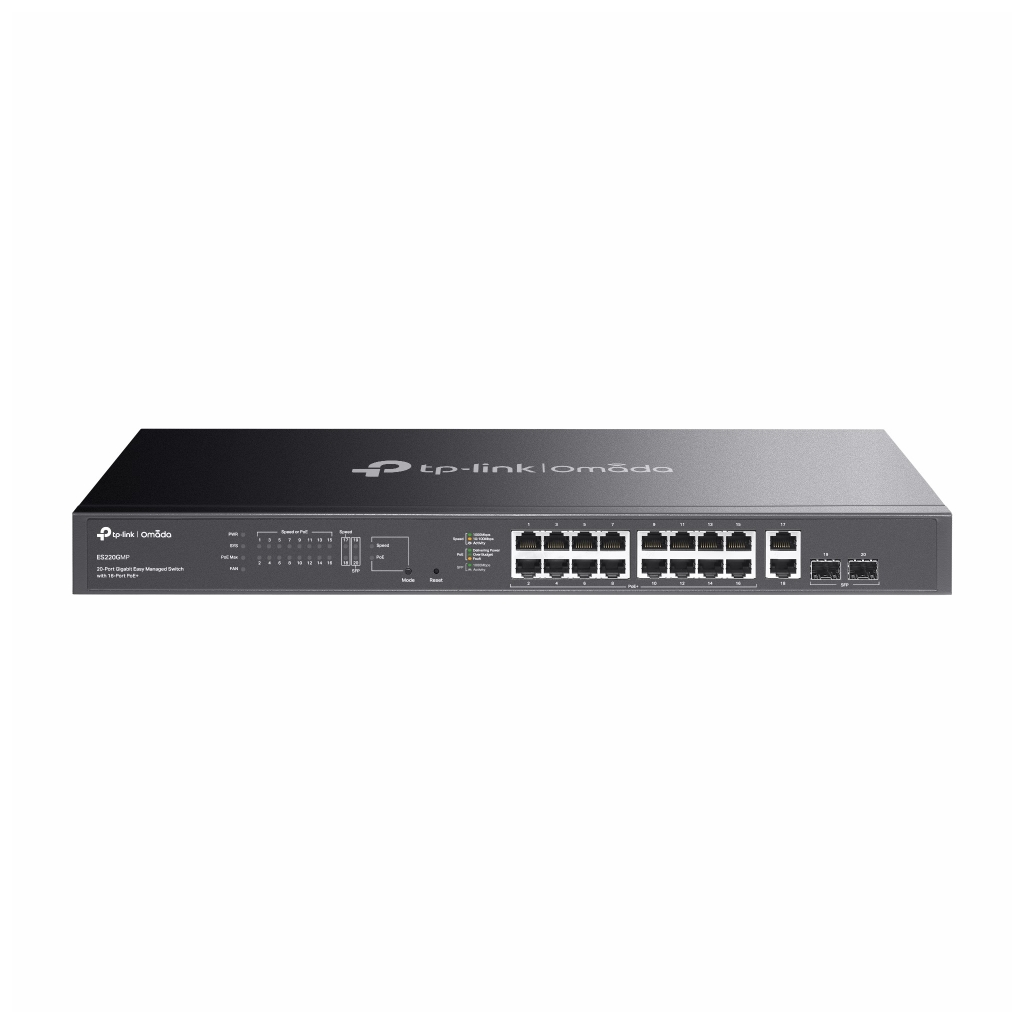

      Omada ES220GMP, 16 Port Gigabit, 16 Port PoE+, 2 Port Gigabit SFP, 250W, Yönetilebilir, Rackmount Switch
      Görsel 1
      AtlasPuan : 7.705.859
      Fiyat:
      9.733,72 TL
      Havale / EFT:
      9.587,71 TL

      Ürüne Oy Verin

      DONANIM ZELLİKLERİ
      Arabirim• 16× 10/100/1000 Mbps PoE+ RJ45 Ports support 802.3af PoE and 802.3at PoE+
      • 2× 10/100/1000 Mbps RJ45 Port
      • 2× Gigabit SFP Slot
      • Auto-Negotiation/Auto MDI/MDIX
      Fan Sayısı2
      KurulumRackmountable
      Fiziksel Gvenlik Kilidi√
      G Kaynağı100–240V AC, 50/60Hz
      PoE Portları RJ45 • Standard: 802.3af PoE and 802.3at PoE+ compliant
      • PoE Ports: 16 ports
      • PoE Budget: 250W available for all PoE+ ports, 30W max per port
      • Fast PoE & Perpetual PoE
      • PoE Auto Recovery‡
      • Up to 250m PoE transmission distance**
      Boyutlar W X D X H 17.3 × 7.1 × 1.7 in. 440 × 180 × 44 mm
      Surge Protection±6kV
      PERFORMANS
      Anahtarlama Kapasitesi40 Gbps
      Paket Ynlendirme Hızı29.76 Mpps
      MAC Adres Tablosu8K
      Paket Buffer Belleği4 Mbit
      Jumbo Frame15 KB
      YAZILIM ZELLİKLERİ
      Quality of Service• Port-based/802.1p/DSCP QoS
      • 8 Priority Queues
      • Priority Schedule Mode
      - WRR Weighted Round Robin
      • Queue Weight Config
      • Bandwidth Control
      - Port-Based Rating Limit
      • Storm Control
      - Multiple Control Modes kbps/pps
      - Broadcast/Multicast/Unknown-Unicast Control?
      L2 zellikleri• Static Link Aggregation
      • Loop Prevention / Loopback Detection
      • Flow Control
      - 802.3x Flow Control
      • Mirroring
      - Port Mirroring
      - One-to-One
      - Many-to-One
      - Ingress/Egress/Both
      • Port Statistics
      - Port Mirror Status
      - Traffic Statistics
      • 802.1ab LLDP
      L2 Multicast• IGMP Snooping
      - IGMP v1/v2/v3 Snooping
      - Fast Leave
      VLAN• MTU VLAN
      • Port-Based VLAN
      • 802.1Q Tag VLAN
      - Max 32 VLAN Groups
      - 4K VID
      İletim MetoduStore-And-Forward
      YNETİM
      Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
      Centralized Management• Omada Cloud-Based Controller
      • Omada Hardware Controller
      • Omada Software Controller
      Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
      Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
      Management Features• Web-based GUI
      • DHCP Client
      • Cable Diagnostics
      • Automatic Device Discovery†
      • Batch Configuration†
      • Batch Firmware Upgrading†
      • Unified Configuration†
      DİĞERLERİ
      SertifikaFCC, CE, RoHS
      Paket İeriği• ES220GMP
      • Power Cord
      • Mounting Brackets
      • Rubber Feet
      • Screws
      • Installation Guide
      Ortam• Operating Temperature: -5?~50? 23?~122?
      • Storage Temperature: -40?~70? -40?~158?
      • Operating Humidity: 10%~90% non-condensing
      • Storage Humidity: 5%~90% non-condensing

      Diğer Özellikler
      Stok KoduES220GMP
      MarkaOmada
      Stok DurumuVar
