      • OMADA ES210GMP, 10 Port Gigabit, 8 Port PoE+, 1Port Gigabit Combo SFP, 123W, Yönetilebilir Metal Kasa Masaüstü/Vesa Switch

      OMADA ES210GMP, 10 Port Gigabit, 8 Port PoE+, 1Port Gigabit Combo SFP, 123W, Yönetilebilir Metal Kasa Masaüstü/Vesa Switch

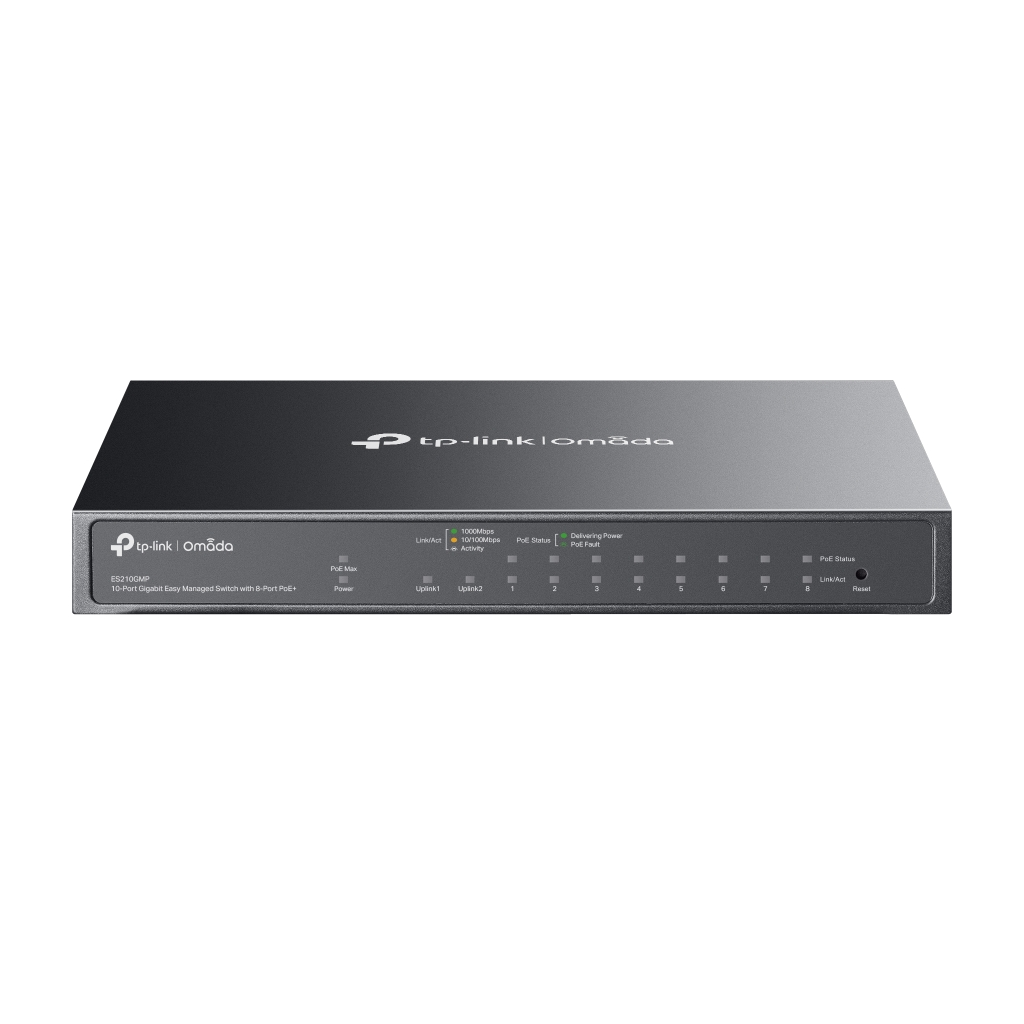

      Görsel 1
      AtlasPuan : 4.281.033
      Fiyat:
      5.407,62 TL
      Havale / EFT:
      5.326,51 TL

      Ürüne Oy Verin



      DONANIM ÖZELLİKLERİ
      Arabirim• 8× 10/100/1000 Mbps PoE+ RJ45 Ports support 802.3af PoE and 802.3at PoE+
      • 1× 10/100/1000 Mbps RJ45 Port
      • 1× Gigabit SFP/RJ45 Combo Port
      • Auto-Negotiation/Auto MDI/MDIX
      Fan SayısıFanless
      Kurulum• Desktop
      • Wall Mount
      Fiziksel Güvenlik Kilidi√
      Güç KaynağıDC Power Adapter Output: 53.5V DC / 2.43A
      PoE Portları RJ45 • Standard: 802.3af PoE and 802.3at PoE+ compliant
      • PoE Ports: 8 ports
      • PoE Budget: 123W available for all PoE+ ports, 30W max per port
      • PoE Auto Recovery‡
      • Up to 250m PoE transmission distance**
      Boyutlar W X D X H 8.2×4.9×1.0 in 209×126×26 mm
      Surge Protection±6kV
      PERFORMANS
      Anahtarlama Kapasitesi20 Gbps
      Paket Yönlendirme Hızı14.88 Mpps
      MAC Adres Tablosu8K
      Paket Buffer Belleği4 Mbit
      Jumbo Frame15 KB
      YAZILIM ÖZELLİKLERİ
      Quality of Service• Port-based/802.1p/DSCP QoS
      • 8 Priority Queues
      • Priority Schedule Mode
      - WRR Weighted Round Robin
      • Queue Weight Config
      • Bandwidth Control
      - Port-Based Rating Limit
      • Storm Control
      - Multiple Control Modes kbps/pps
      - Broadcast/Multicast/Unknown-Unicast Control?
      L2 Özellikleri• Static Link Aggregation
      • Loop Prevention / Loopback Detection
      • Flow Control
      - 802.3x Flow Control
      • Mirroring
      - Port Mirroring
      - One-to-One
      - Many-to-One
      - Ingress/Egress/Both
      • Port Statistics
      - Port Mirror Status
      - Traffic Statistics
      • 802.1ab LLDP
      L2 Multicast• IGMP Snooping
      - IGMP v1/v2/v3 Snooping
      - Fast Leave
      VLAN• MTU VLAN
      • Port-Based VLAN
      • 802.1Q Tag VLAN
      - Max 32 VLAN Groups
      - 4K VID
      İletim MetoduStore-And-Forward
      YÖNETİM
      Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
      Centralized Management• Omada Cloud-Based Controller
      • Omada Hardware Controller
      • Omada Software Controller
      Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
      Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
      Management Features• Web-based GUI
      • DHCP Client
      • Cable Diagnostics
      • Automatic Device Discovery†
      • Batch Configuration†
      • Batch Firmware Upgrading†
      • Unified Configuration†
      DİĞERLERİ
      SertifikaFCC, CE, RoHS
      Paket İçeriği• ES210GMP
      • Power Adapter
      • Installation Guide
      • Rubber Feet
      Ortam• Operating Temperature: 0?~40? 32?~104?
      • Storage Temperature: -40?~70? -40?~158?
      • Operating Humidity: 10%~90% non-condensing
      • Storage Humidity: 5%~90% non-condensing
      Diğer Özellikler
      Stok KoduES210GMP
      MarkaOmada
      Stok DurumuVar
