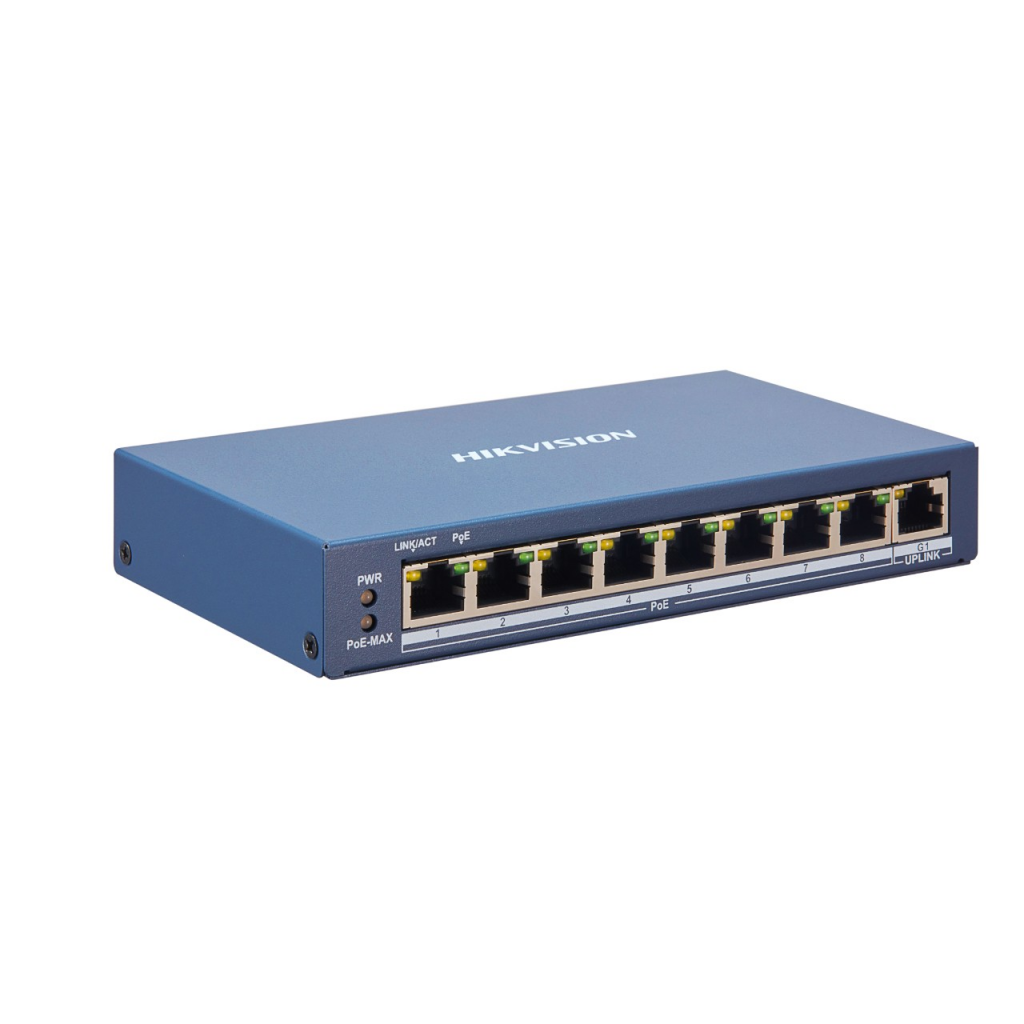

      HIKVISION DS-3E1309P-EI, 8 Port, MegaBit, 8 Port PoE, 123W, +1 Port GigaBit Uplink, Yönetilemez, Masaüstü Switch
      Görsel 1
      AtlasPuan : 1.285.626
      Fiyat:
      1.623,94 TL
      Havale / EFT:
      1.599,58 TL
      298,40 TL'den başlayan taksit seçenekleri için tıklayın.
      Aynı Gün Kargo

      Ürüne Oy Verin

      • Network Parameters
      • Port Number8 × 10/100 Mbps PoE ports, and 1 × Gigabit RJ45 port
      • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
      • Working Mode

        Standard mode default

        Extend mode

      • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
      • Forwarding ModeStore-and-forward switching
      • MAC Address Table16 K
      • Internal Cache4 Mbits
      • Switching Capacity3.6 Gbps
      • Packet Forwarding Rate2.6784 Mpps
      • PoE Power Supply
      • PoE StandardIEEE 802.3af, IEEE 802.3at
      • PoE Power Pin

        End-span: 1/2 - , 3/6 +

        Mid-span: 4/5 + , 7/8 -

        8-pin power: 1/2 - , 3/6 + , 4/5 + , 7/8 -

      • PoE PortPorts 1 to 8
      • Max. Port Power30 W
      • PoE Power Budget110 W
      • Software Function
      • Port ConfigurationSupport rate, flow control, and switch configuration
      • Device MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
      • PoE FunctionIEEE 802.3at/af device provides power supply.
      • PoE Configuration

        PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.

        PoE enabling: Support

      • General
      • ShellMetal material, fan-free design
      • Net Weight0.35 kg 0.77 lb
      • Gross Weight1.114 kg 2.45 lb
      • Dimension W × H × D 170 mm × 27.6 mm × 93.1 mm 4.76” × 3.47” × 1.09”
      • Operating Temperature0°C to 40°C 32°F to 104°F
      • Storage Temperature-40°C to 85°C -40°F to 185°F
      • Operating Humidity5% to 95% no condensation
      • Relative Humidity5% to 95% no condensation
      • Power Supply48 VDC, 2.5 A
      • Max. Power Consumption120 W
      • Approval
      • EMCFCC 47 CFR Part 15, Subpart B ; CE-EMC EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015 ; RCM AS/NZS CISPR 32: 2015 ; IC ICES-003: Issue 6, 2016
      • SafetyUL UL 60950-1 ; CB IEC 60950-1:2005 + Am 1:2009 + Am 2:2013 ; CE-LVD EN 60950-1:2005 + Am 1:2009 + Am 2:2013
      • ChemistryCE-RoHS 2011/65/EU ; WEEE 2012/19/EU ; Reach Regulation EC No.1907/2006



      Diğer Özellikler
      Stok KoduDS-3E1309P-EI
      MarkaHikvision
      Stok DurumuVar
